型號226 減壓閥
單級鋁制閥身，配套SCOTTY110氣瓶
Elgiloy? 隔膜降低泄漏率，確保準確，穩定的壓力控制。
集成過濾器保護內部零件，延長減壓閥壽命
CGA-180

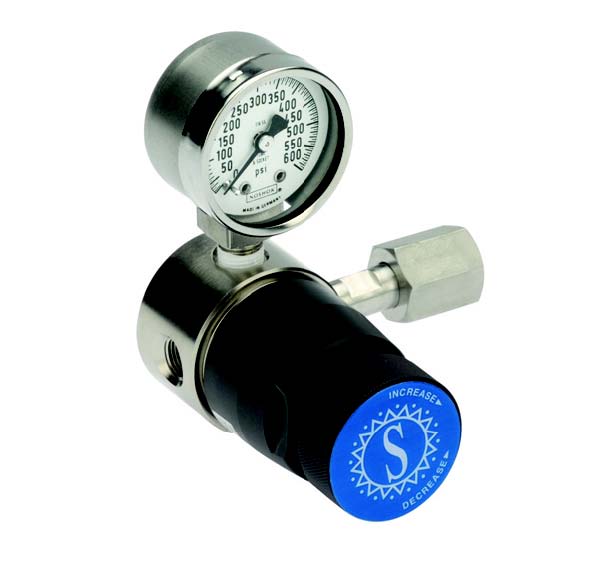

Model 226
Designed for use with SCOTTY? 48, 74 and 110 cylinders. The 226A, B and C
versions of this regulator feature cylinder pressure gauges, while the 226AD, BD and CD feature delivery pressure gauges.
Benefits/Features
Compact size and light weight design for easy
transportability.
Elgiloy? diaphragm minimizes diffusion
resistance and provides accurate and stable
pressure control.
Sintered filter protects the internal components
and extends service life.
規格
Inlet Pressure:
500 psig (35 bar), 2000 (137 bar) maximum
Operating Temperature Range:
-40°F to 140°F (-40°C to 60°C)
Flow Coefficient: Cv = 0.06
Supply Pressure Effect:
2 psi per 100 psi (0.1 bar per 7 bar)
Regulator Inlet Port: 1/8" NPT Female
Inlet Connection: Specify CGA
出口連接: 1/8" NPT Female
and all other configurations
Gauge Size: 1.5" (41 mm) face
Weight: 0.7 lb. (0.3 kg)
材料
Body: 鋁
Diaphragm: Elgiloy?
Seats: PCTFE
Seals: Teflon?
Bonnet: 鋁
儀表: 不銹鋼
訂貨信息：
型號226 減壓閥
| Model 226 鋁 | 輸送壓力范圍Delivery Pressure Range | 輸送壓力表 Delivery Pressure Gauge | 氣缸壓力表 Cylinder Pressure Gauge |
| psig | bar | psig | bar | psig | bar |
| Cylinder Gauge |
|
|
|
|
|
|
| Q1-226A-(*) | 1 – 25 | 0.1 – 2 | None | None | 0 – 600 | 0 – 41 |
| Q1-226B-(*) | 1 – 60 | 0.1 – 4 | None | None | 0 – 600 | 0 – 41 |
| Q1-226C-(*) | 3 – 100 | 0.2 – 7 | None | None | 0 – 600 | 0 – 41 |
| Q1-226AS-(*) | 1 – 25 | 0.1 – 2 | None | None | 0 – 2000 | 0 – 138 |
| Delivery Gauge |
|
|
|
|
|
|
| Q1-226AD-(*) | 1 – 25 | 0.1 – 2 | 0 – 60 | 0 – 4 | None | None |
| Q1-226BD-(*) | 1 – 60 | 0.1 – 4 | 0 – 100 | 0 – 7 | None | None |
| Q1-226CD-(*) | 3 – 100 | 0.2 – 7 | 0 – 200 | 0 – 14 | None | None |
* Specify CGA.
